PBC02SAAN
Manufacturer:
Sullins Connector Solutions
Mfr.Part #:
PBC02SAAN
Datasheet:
Description:

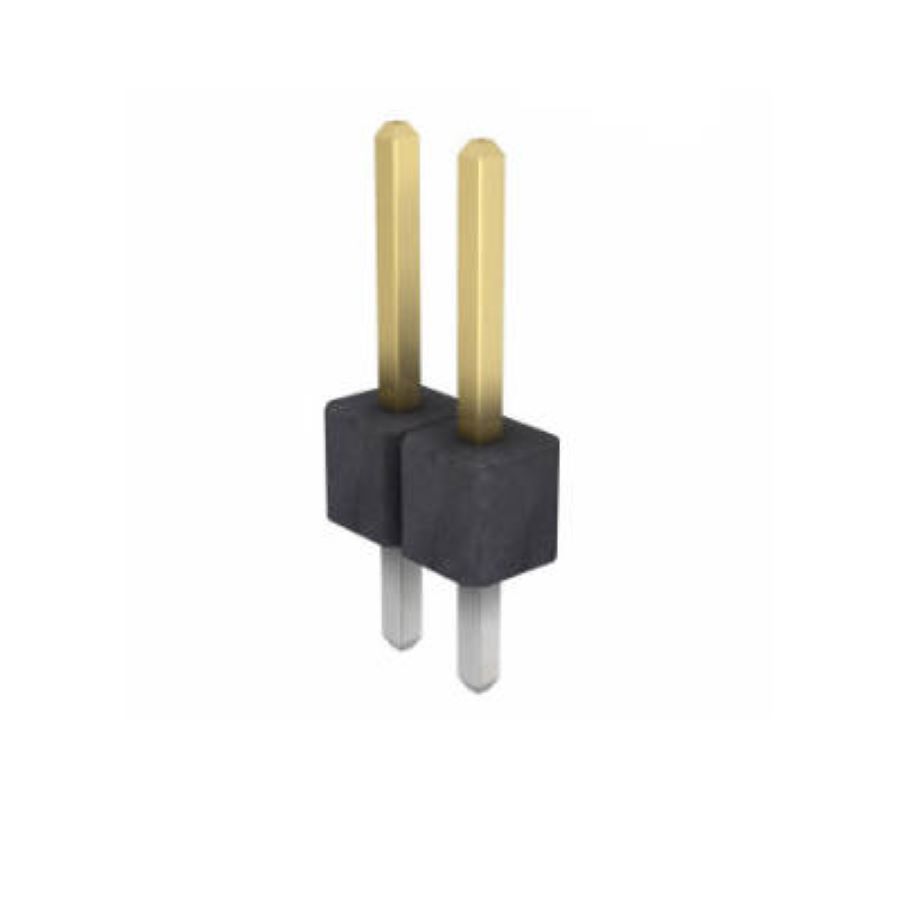

Headers and Wire Housings Through Hole Male Pin Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5.08 mm |
| Width | 2.54 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Height | 2.54 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Color | Black |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Male Pin |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Plastic |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 3.05 mm |
Stock: 55244
Distributors
pcbx
pcbxUnit Price$0.26480
Ext.Price$0.26480
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26480 | $0.26480 |
| 10 | $0.22327 | $2.23270 |
| 25 | $0.21144 | $5.28600 |
| 50 | $0.20024 | $10.01200 |
| 100 | $0.18963 | $18.96300 |
| 300 | $0.17915 | $53.74500 |
| 500 | $0.16925 | $84.62500 |
| 1000 | $0.16117 | $161.17000 |
| 3000 | $0.15227 | $456.81000 |
| 5000 | $0.14386 | $719.30000 |
| 10000 | $0.13700 | $1370.00000 |
